Stage ERC 216zi (1)

Electric pedestrian controlled truck 1,4 - 1.6t

  • 2400 - 6000 mm
  • 1400 - 1600 kg
  • Compacta y potente con la batería de iones de litio.

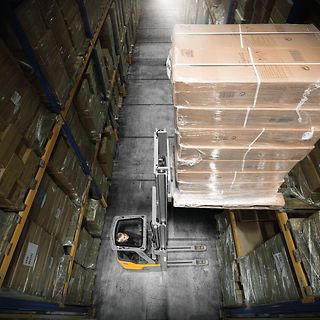

  • Gran despacho de mercancías mediante el transporte simultáneo a dos niveles.
  • Mayor margen con el suelo para rampas, umbrales e irregularidades.
  • Los sistemas de asistencia inteligentes de apilado garantizan la seguridad.

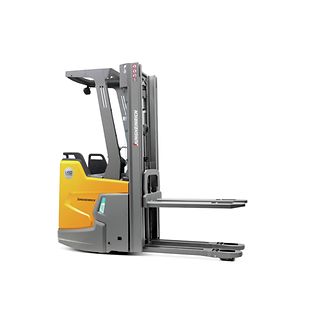

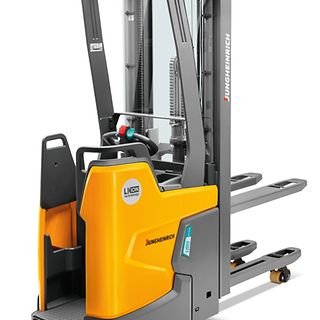

ERC 214zi/ 216zi

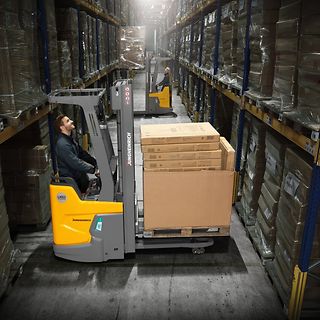

El potente apilador eléctrico ERC zi viene equipado de serie con tecnología de iones de litio; para un diseño revolucionario y extremadamente compacto del mismo. Esta ágil carretilla elevadora cuenta con una aplicación versátil y está diseñada para el almacenamiento y la extracción segura a alturas de hasta 6 m. Realiza transportes de mercancía en trayectos de media a larga distancia y sirve para la preparación de pedidos. Mediante un mecanismo de elevación adicional de los brazos porteadores pueden tomarse dos palets en lugar de solo uno, lo cual aumenta considerablemente la eficiencia y el rendimiento en el despacho de mercancías. Gracias a un mayor margen con el suelo, la ERC supera sin esfuerzo todo tipo de umbrales, irregularidades o rampas. Los sistemas de asistencia inteligentes para el apilado hacen que la manipulación de las cargas sea fácil y segura. Tanto la plataforma del conductor estable y amortiguada como el smartPILOT con centraje automático procuran una ergonomía perfecta, facilitando así el control a una mano de la carretilla. Buena visibilidad gracias a la luneta panorámica (opción) y visión sin obstáculos hacia delante.

Iones de litio

Content Iones de liltio + logotipo 5 años
Sin preocupaciones. Sin complicaciones.

Con la Garantía Li-ion Plus de Jungheinrich, le ofrecemos una promesa de rendimiento a largo plazo de hasta 8 años en nuestras baterías de iones de litio de alta calidad, para que pueda concentrarse completamente en sus tareas sin preocuparse.

Estamos convencidos de que esta decisión es la correcta para usted. Por eso le garantizamos que puede volver a la tecnología original de forma fácil y rápida en cualquier momento dentro de los primeros 6 meses, sin indicar los motivos.

Obtener más información

Ventajas

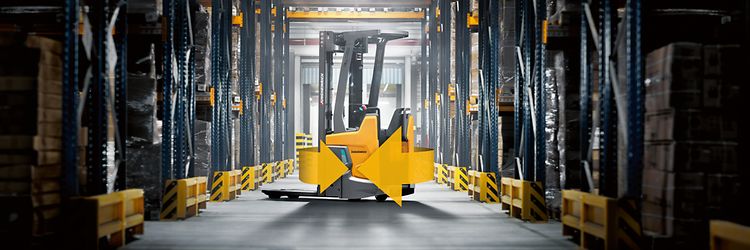

ERC 216zi Campaign Keyvisual

Aumente la productividad de su almacén con una nueva forma de pensar, en todos los sentidos.

El primer apilador de palets eléctrico con tecnología de iones de litio y un nuevo y revolucionario diseño de montacargas.

It’s not always enough just to make things better, sometimes they need to be redefined all-round.The ERC 216zi, the world’s first li-ion stacker truck, shows how it’s done. The lithium-ion battery enables an entirely new and revolutionary truck design. This results in an ultra-compact and extremely manoeuvrable pallet stacker that gives you much better throughput performance even in narrow warehouse surroundings. The new design also provides a fixed platform that protects the driver on three sides and boosts productivity thanks to perfect ergonomics and comfort. On top of these benefits, you get optimum energy efficiency and availability, even in multi-shift operations, thanks to lithium-ion power from Jungheinrich.

Not built around convention, but built to meet your specific needs.ERC 216zi - the electric pallet stacker redefined all-round:

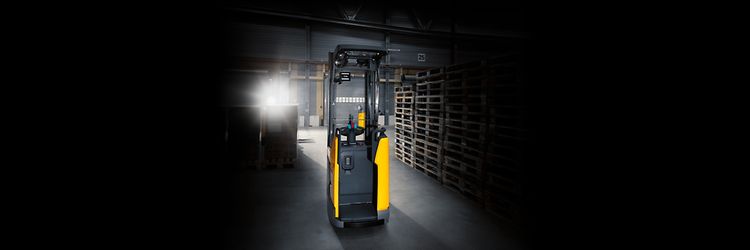

ERC 216zi Campaign

Compact all-round - for faster goods transfer.

Stacker trucks have never been so maneuverable.

The lithium-ion battery in the ERC 216zi enables an entirely new truck geometry with optimum weight distribution, giving the vehicle much more freedom of movement. And despite its ultra-compact dimensions - about 17 cm more compact than a comparable truck with a fixed platform - this unique stacker truck offers improved operational stability, residual capacity and driving characteristics. Its overall operating speed is also higher, without giving the driver additional tasks to perform. The result: far greater potential for better throughput performance.

Benefits of the ERC 216zi in terms of truck design:

  • Ultra-compact and manoeuvrable thanks to a revolutionary vehicle concept with a lithium-ion battery
  • Improved driving characteristics due to optimum weight distribution
  • Improved operational stability and residual capacity ensured by a lower load centre

ERC 216zi Campaign (1)

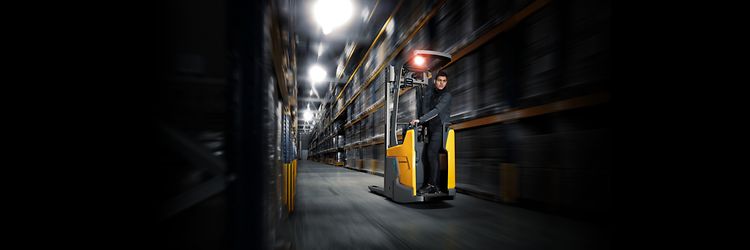

Ergonomic all-round – for intuitive operation.

Greater driver convenience – improved warehouse productivity.

The revolutionary new vehicle geometry of the ERC 216zi frees up new space for working ergonomically. The fixed platform provides support and convenience, especially during prolonged operating times. The controls are ideally arranged, so drivers can operate the truck intuitively. The easy-to-follow 4-inch screen is recessed in the dashboard panel, and a well-designed storage system lets the drivers customise their working area. The technically refined hydraulic system also assists the driver: the mast entry cushioning system makes smooth work of mast movements, and the raising and lowering action adapts to suit the current load - perfectly, quickly, and with no jerky movements.

Ergonomic benefits of the ERC 216zi:

  • Ideal support and convenience for the driver thanks to the fixed platform
  • Intuitive control due to perfectly arranged controls and a wide range of options
  • A clear view of everything thanks to a 4-inch screen flush-recessed in the dashboard panel
  • More opportunities for customisation ensured by a well-designed storage system

ERC 216zi Campaign (2)

Efficient all around – for top performance in the warehouse.

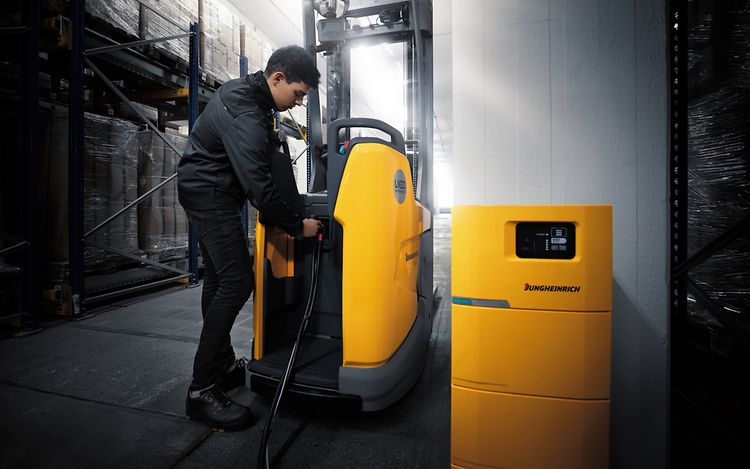

ERC 216zi Campaign (3)

Stay ahead of the competition with lithium-ion power.

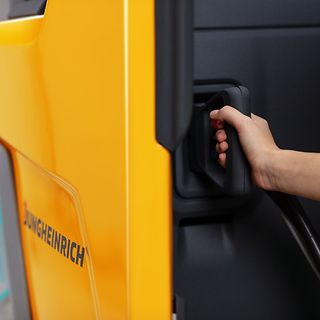

The lithium-ion battery combines perfectly with the vehicle for optimum operation. The benefit offered by the lithium-ion technology, particularly the rapid and intermediate charge with extremely short charging times, gives you the flexibility of use at all times. The ultra-compact structure of the ERC 216zi makes it much more manoeuvrable for the operator, with an impressively high operating speed even in narrow warehouse environments.

Efficiency benefits of the ERC 216zi:

  • Constantly high-performance thanks to the perfect interplay of the lithium-ion battery and truck
  • High truck availability levels due to extremely short charging times
  • More productive time ensured by zero maintenance and no need to replace batteries
  • 5-year guarantee on your lithium-ion battery

ERC 216zi Campaign (4)

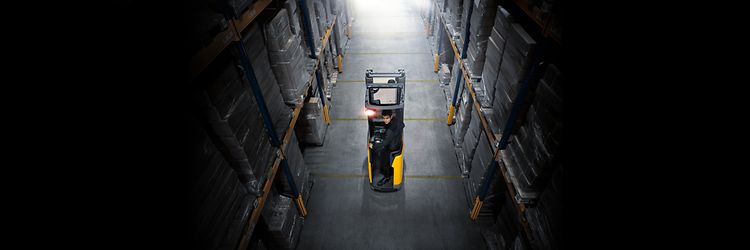

Safe all-round – for your employees and your operations.

ERC 216zi Campaign (5)

Protection on all sides combined with maximum freedom of movement.

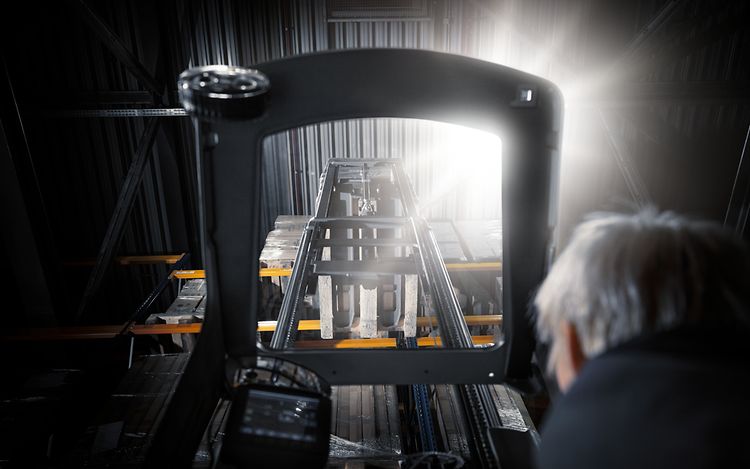

Despite the small overall dimensions of the truck, the fixed platform of the ERC 216zi with protection on three sides provides the driver with ample room to move. This unique vehicle design is only possible thanks to the lithium-ion technology. The optional panoramic protective roof provides additional protection against falling loads while maintaining optimal upward vision. Many optional assistance systems are available to augment the safety concept of the ERC 216zi. Not only will they increase the precision and speed of your work processes, but also the level of safety for drivers, goods and your warehouse.

Safety benefits of the ERC 216zi:

  • Protection on three sides and maximum freedom of movement thanks to the fixed platform
  • Upward protection and clear vision due to the optional panoramic protective roof
  • Improved safety and productivity allowed by many optional assistance systems

Start the lithium-ion age in your warehouse now!

Arrange a personal consultation today!

Características

Resumen de modelos

Model Capacidad de carga Altura de elevación Velocidad de conducción Longitud total Tensión de batería
ERC 214zi 1.400 kg 6.000 mm 12 km/h 2.395 mm 24 V
ERC 216zi 1.600 kg 6.000 mm 12 km/h 2.395 mm 24 V
